The CO₂ (Carbon Dioxide) fire extinguisher is specifically designed for Class B (flammable liquids) and electrical fires. It works by displacing oxygen around the fire, effectively suffocating the flames without leaving any residue.

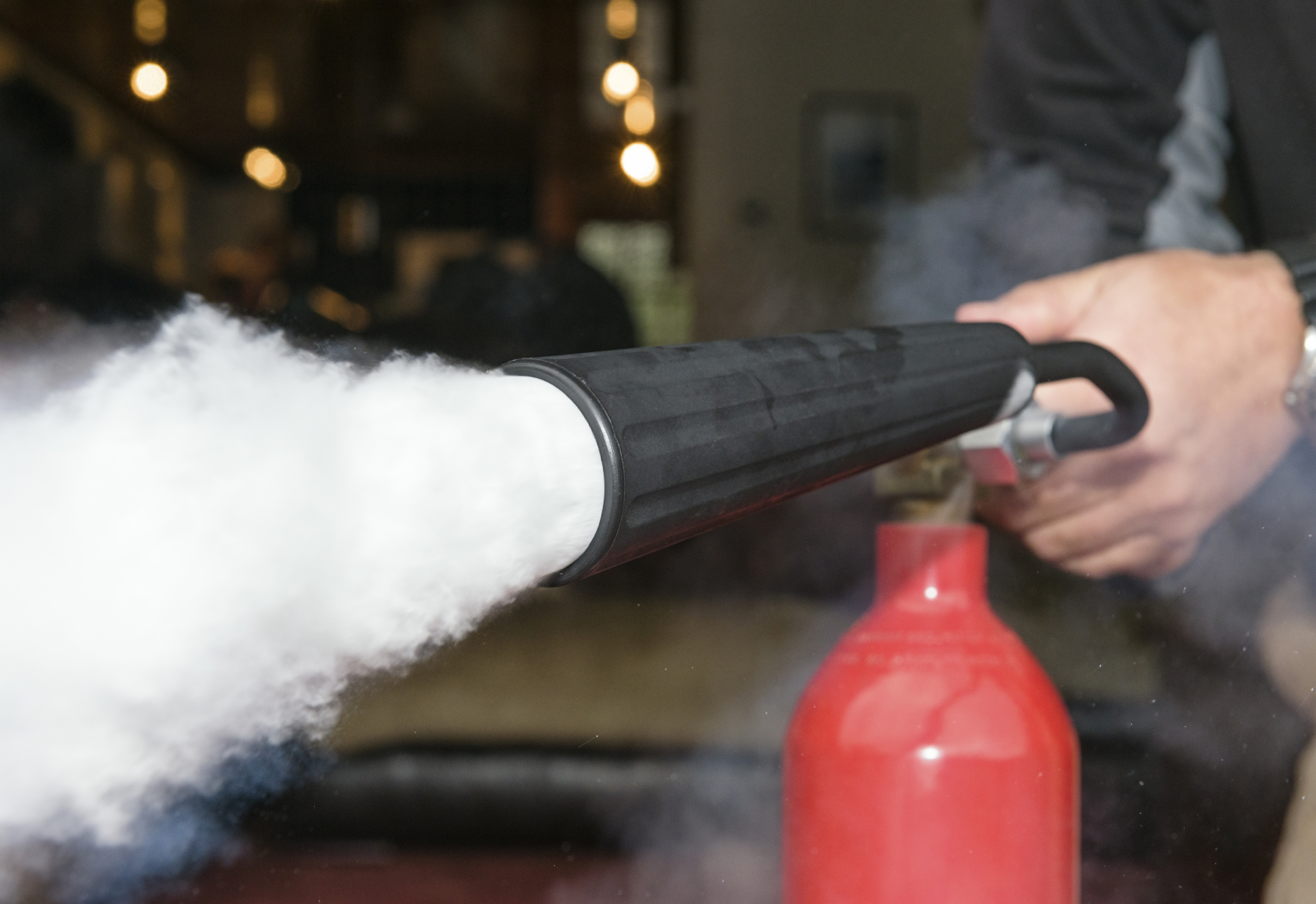

This makes CO₂ extinguishers ideal for use in server rooms, electrical panels, laboratories, and offices where sensitive equipment is present. The extinguisher is equipped with a discharge horn to control the gas flow and prevent static discharge.

CO₂ extinguishers are clean, non-conductive, and safe for electrical applications, but they are not suitable for Class A fires as they do not cool the burning material effectively.

Typical Engineering Data:

• Type: Stored Pressure
• Extinguishing Agent: Carbon Dioxide (CO₂)
• Operating Pressure: ~55–60 bar
• Discharge Time: 8–15 seconds
• Range: 1–3 meters
• Capacity: 2kg, 3kg, 5kg, 6kg
• Working Temperature: -20°C to +60°C
• Residue: None (Clean Agent)
